ESTREL ESHOOTER MOSFET ETU ADVANCE FOR V2 AEG REAR-WIRED

ESHOOTER KESTREL V2 ETU ADVANCE MOSFET FOR AEG V2 REAR WIRING - Features

• 7 selectable modes: Safe, Semi-automatic, Binary, Burst, Aug, Fully Automatic, and Sniper.
• Allows for Pre-Cocking for a better and faster trigger response.
• Real Magazine simulation. After 30 shots, the magazine must be re-inserted.
• Adjustable ROF (Rate of Fire).
• Protection against over-discharge and low battery.
• Active Braking and Cycle Detection protects your gears and gearbox.
• Remote firmware updates via the Eshooter App.
• Smart Fuse protects the battery, motor, and controller against overheating, overloading, and short circuits.
• Standby loading after one hour to prevent unnecessary battery drain.
• Locked Rotor Protection will alert the user if the gears and motor are not functioning correctly.
• Sensor Calibration to ensure maximum performance.

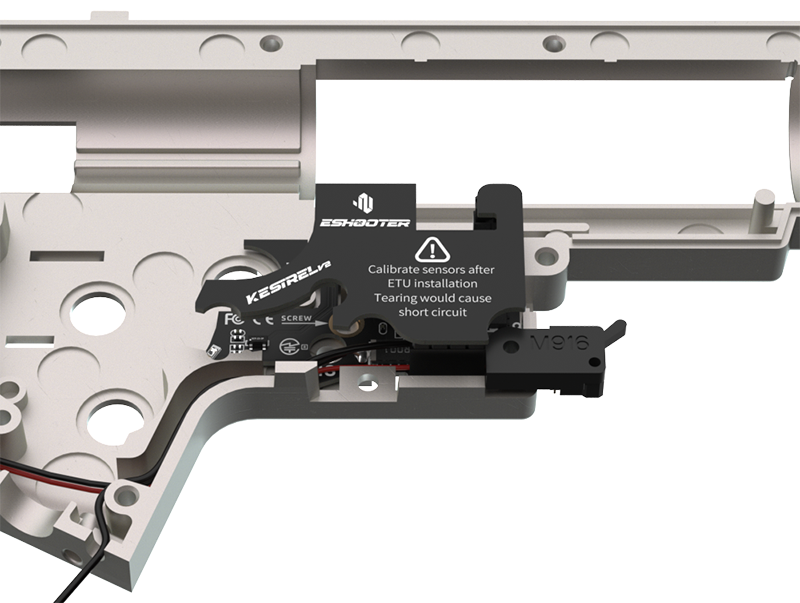

• The Kestrel V2 ETU is compatible with the standard Tokyo Marui V2 gearbox. It makes your AEG much smarter, more reliable, and more responsive. Customize your AEG's firing parameters by connecting the "Eshooter" App for a different shooting experience.

Detailed Features

• Trigger Sensitivity Adjustment: Five sensors detect the trigger movement and control its sensitivity. Connect to the Eshooter App wirelessly, without disassembling your gun.
• Selection Modes: Two selectors allow your gun to use different selection modes, including:
• Safe Mode can prevent your gun from firing, regardless of the selector position.
• Semi Mode allows you to fire one shot at a time.
• Binary Mode allows you to pull the trigger for one shot and release it to fire again.
• Burst Mode allows you to pre-set the number of BBs fired.
• Aug Mode allows you to pull the trigger slightly (depending on your trigger sensitivity setting) for one shot, then pull continuously to switch to AUTO mode.
• Auto Mode allows you to shoot continuously until the trigger is released.
• Sniper Mode can be used with the sniper delay function, simulating 2-stage safety and recoil.
• Pre-Cocking: Pre-Cocking simulates the trigger reaction of a real gun. It allows the spring to be pre-compressed to speed up the reaction. You can adjust the Pre-Cocking settings before starting. Pre-Cocking is usable in all modes mentioned above.
• Real Magazine: Simulate a 30-round real magazine for a more realistic game experience. After 30 shots, the magazine must be reloaded.
• Rate of Fire Control: Allows adjustment of the AEG's rate of fire to achieve the desired ROF.
• Battery Protection: LiPo and LiFe batteries are very sensitive to over-discharge. To prevent damage from over-discharge, the microprocessor prevents firing when the voltage drops to a critical level.
• Low Battery Warning: When the voltage drops to a critical level, the App sends a low battery notification, and the AEG will not fire.
• Active Brake: The adaptive active brake function avoids gearbox instability, ensuring the piston stops in the forward position to reduce unnecessary stress and extend the lifespan of the gearbox and internal parts.
• Cycle Detection: The Kestrel V2 detects the end of the cycle with its speed sensor that counts every tooth. You can thus choose between DSG (9:1), SSG (13:1), and standard (18:1) gears.
• Firmware Updates: You can update the firmware remotely via the Eshooter App, which supports free OTA service.
• Smart Fuse: The Kestrel V2 is equipped with two fuses, a smart mini-fuse and an automatic fuse, with a maximum intensity of 25A. They protect the battery, motor, and controller, even with incorrect battery connection. It also protects the MOSFET against overheating, overloading, and short circuits, preventing damage to the motor and battery if your gun jams.
• Sleep Mode: The ETU enters standby after one hour of inactivity of your gun, preventing the battery from draining.
• Locked Rotor Protection: The rotor is automatically locked. The Kestrel V2 provides active protection and reminds users to check the gearbox to prevent damage due to improper gear and motor operation, or overcurrent.
• Sensor Calibration: Kestrel V2 provides a sensor calibration function to ensure your ETU sensors maintain the best performance and give you a more accurate shooting experience.
• Manufacturer: Eshooter

Specifications

• Dimensions (mm): $47.4 \times 28.7 \times 13.5$
• Voltage Range: $3.75\text{ V} - 17\text{ V}$
• Current Consumption: $17\text{ mA}$
• Temperature Range: $-15 \text{ to } +50$ degrees
• Relative Humidity: $\le 80\%$
• Compatibility: Suitable for Tokyo Marui Spec Version 2 Airsoft AEG Gearboxes
• Package Includes: MOSFET Kit, $2 \times 0.2\text{ mm}$ Shims, $8 \times 0.3\text{ mm}$ Shims, $8 \times 0.5\text{ mm}$ Shims, $2$ Plum Blossom Metal Gaskets, $2 \times \text{M}2\times 4$ Screws, $1$ Deans Connector, $2$ Heat Shrink Tubing, $2$ Double-Sided Adhesive Tapes, $2 \times 2.6\times 14$ Screws, $1$ Magazine Button Base, $1 \times 30\text{A}$ Fuse, Manual.

Warning: Professional installation is strongly recommended. Please exercise discretion when installing custom parts, as fit and compatibility may vary. Modifications may be required. Professional installation recommended.
