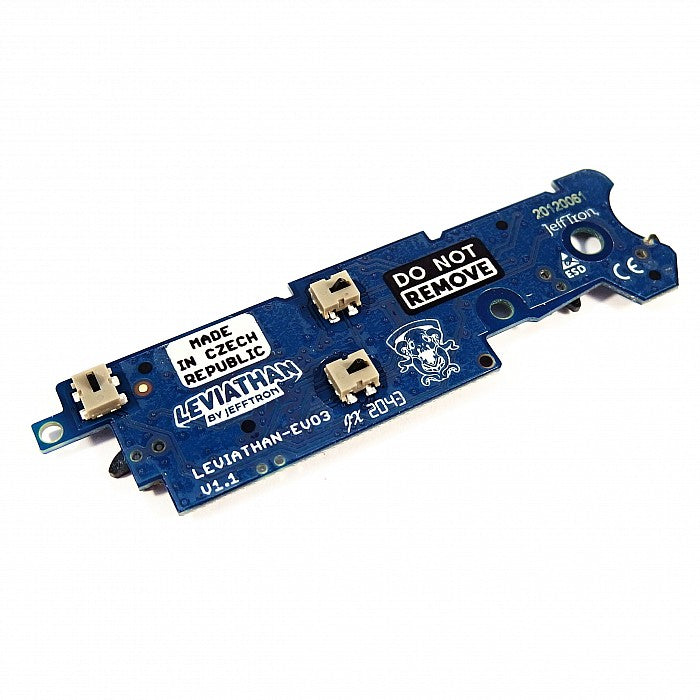

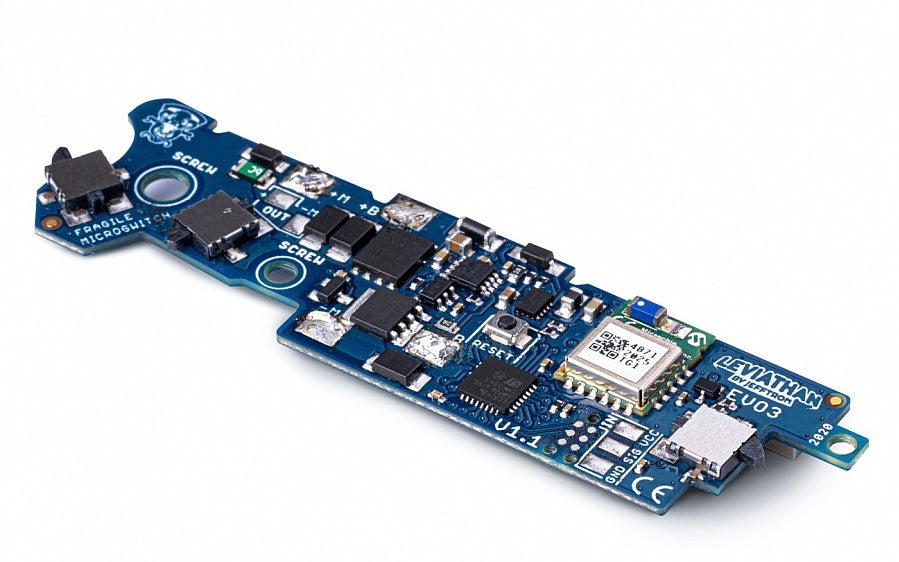

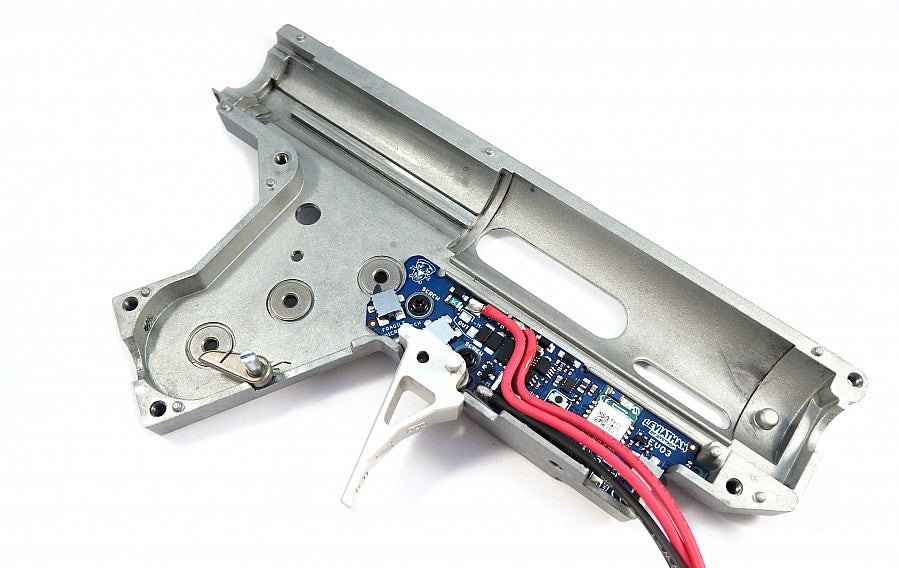

the jefftron leviathan airsoft mosfet evo3 is a processor controlled mosfet with wireless communication, fully integrated into the asg evo3 gearbox, replacing the original electronics. it is plug and play (no soldering required) and is controlled entirely via a smartphone application (ios and android). it retains all original evo3 functions like empty magazine detection, bolt catch, burst fire, and battery undervoltage protection.

Main Functions

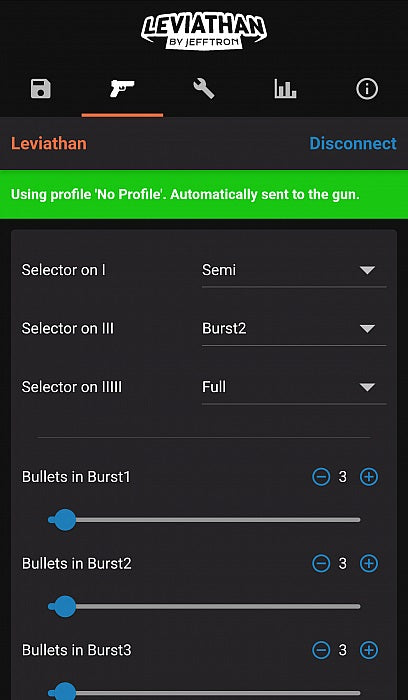

• new fire modes: adds new independent fire modes for each position on the fire selector (semi - burst - auto).

• adjustable burst: three adjustable burst settings (range 2 to 20 shots).

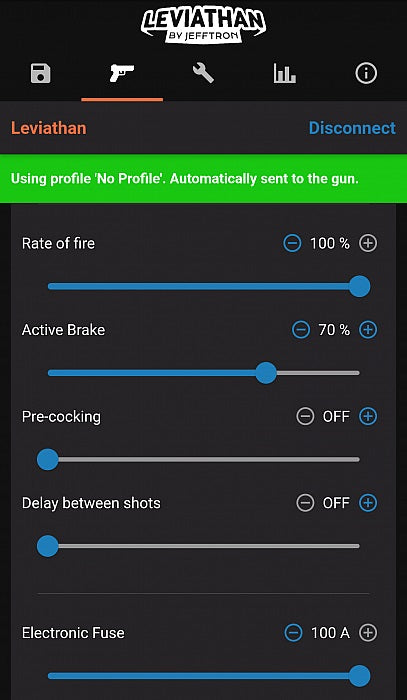

• rate of fire (rof) control: rof can be reduced to 40% by adding pauses between shots, ensuring a fast trigger response even at very low rof.

• arl mode: included arl mode (anti-reverse latch) allows use of pre-cocking, lower level active braking, and dsg gears.

• active braking: adjustable active braking force (can be disabled with arl mode installed).

• pre-cocking: function for instant shooting on a semi shot (only usable with arl mode installed).

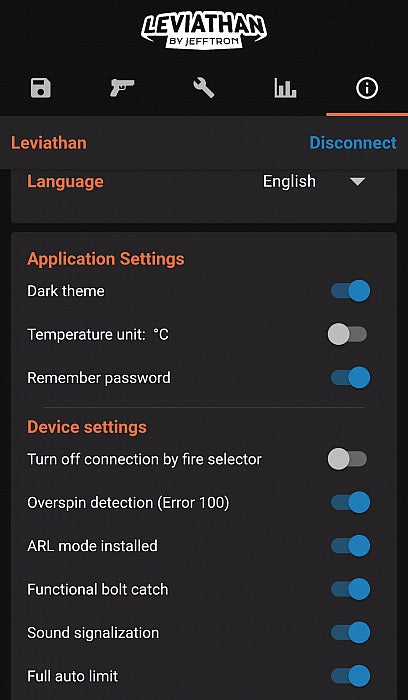

• realistic operation: bolt catch lever must be pulled after battery connection, simulating bullet loading. empty magazine sound indication and bolt catch lever can be disabled in the app.

• delay between shots: adds time (0.1 to 4.0 seconds) during which firing is impossible, simulating weapon reload delay or recoil.

• electronic fuse: high current detection electronic fuse prevents damage in case of issues.

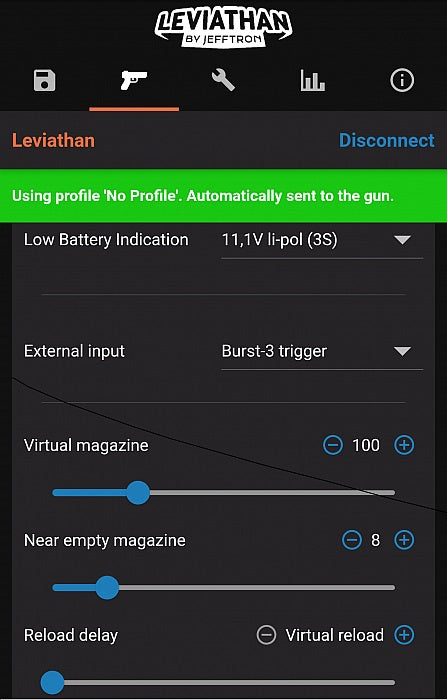

• low battery indication: low battery indication for 2s - 4s li-pol and 3s - 4s li-fe.

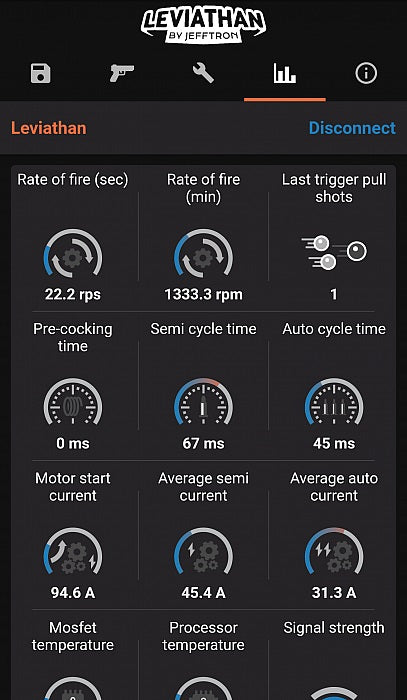

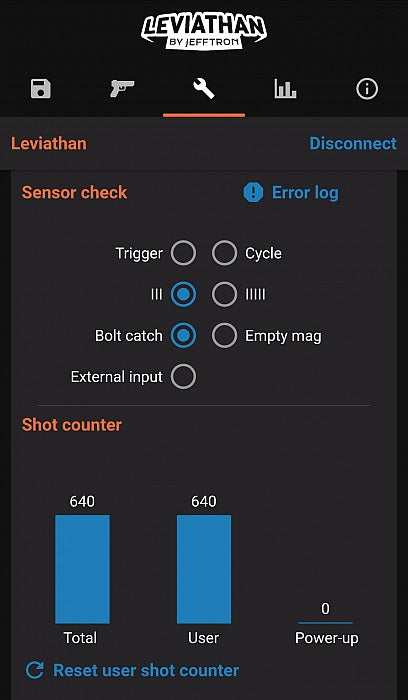

• statistics screen: displays shot output with cycle time, motor current consumption, rof, and mosfet temperature for fine tuning.

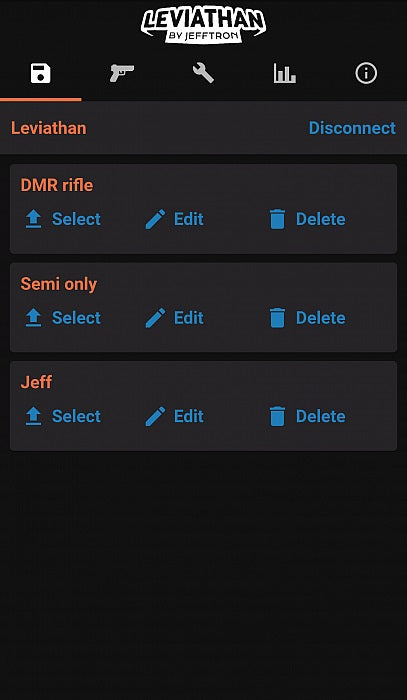

• profiles: user can save multiple settings under profiles.

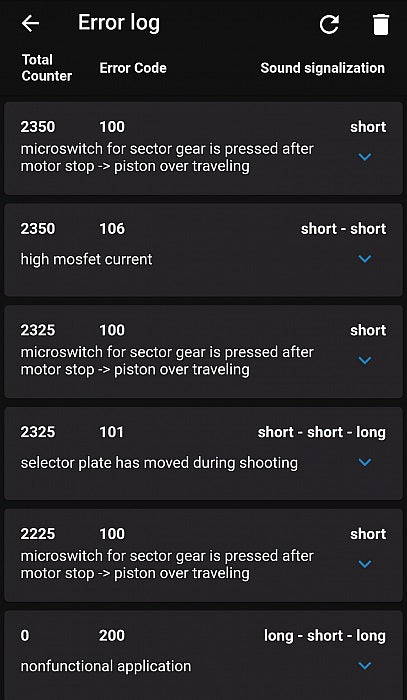

• logging: error log displays errors that occurred during the device's lifespan.

Technical Specifications

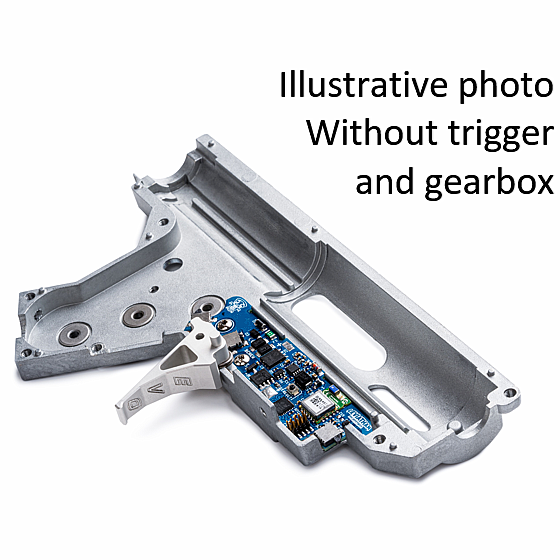

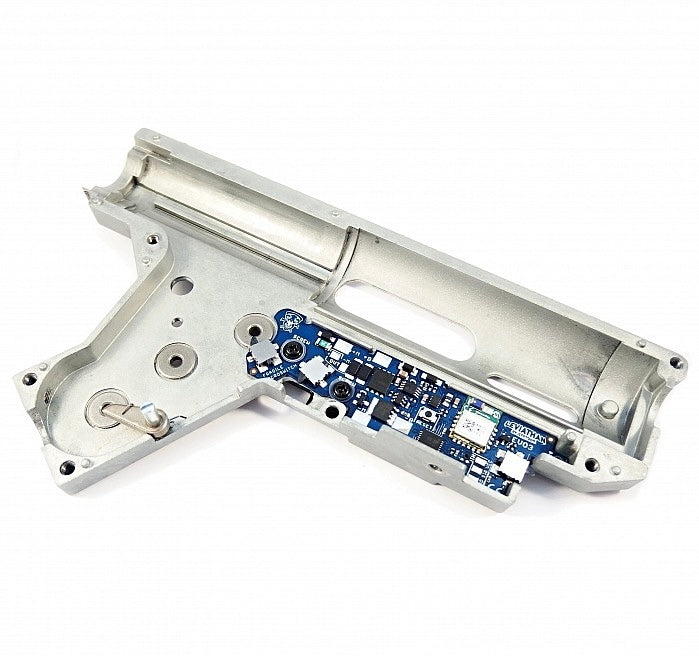

• installation: easy installation inside the asg evo 3 a1 gearbox version.

• compatibility: compatible with scorpion evo 3 - a1, scorpion evo 3 - a1 bet, scorpion evo 3 - a1 carbine with gen.1, 2018, and 2020 gearboxes.

• barrel and trigger: compatible with cnc stock and trigger.

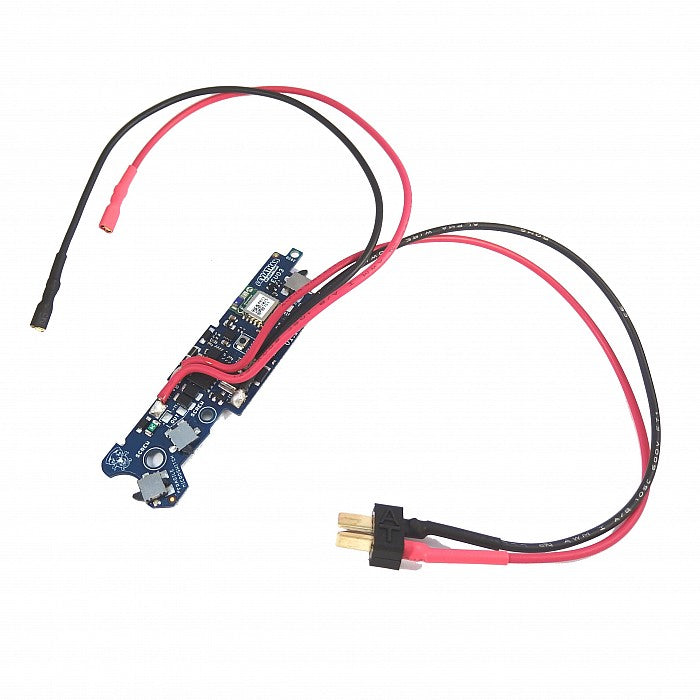

• wiring: fully pre-wired with 1.5 qmm (awg16) high quality wires and thin mppe insulation; ready for front wiring with dean-t connector; no soldering needed.

• water resistance: pcb is covered with conformal coating, protecting the device against water.

• voltage: specified for common batteries up to 17v (ni-xx 8.4 - 12v, lipol 7.4 - 14.8v).

• motor compatibility: compatible with brushless motors (warhead, option no. 1, etc.) by enabling "brushless motor" function in the app.

• removal from gearbox: remove the cut-off lever and stock electronics; they are not needed with the leviathan - evo 3.

Fire Modes (Independent for each selector position)

• safe: no response to the trigger.

• semi: fires one shot per trigger pull.

• semi/burstx: short trigger pull fires a single shot, long pull fires a burst.

• binary trigger: fires a single shot when the trigger is pressed and another single shot when released.

• burstx: fires a burst per trigger pull.

• burstx+bursty: short pull fires burstx, long pull fires burstx+bursty.

• burstx/full: short pull fires burstx, long pull fires automatic fire.

• full: fires automatic fire until the trigger is released.
