HRG B3 Compact Charger Characteristics
Description:
The HRG B3 Compact Charger is very simple to use for 2S and 3S batteries.

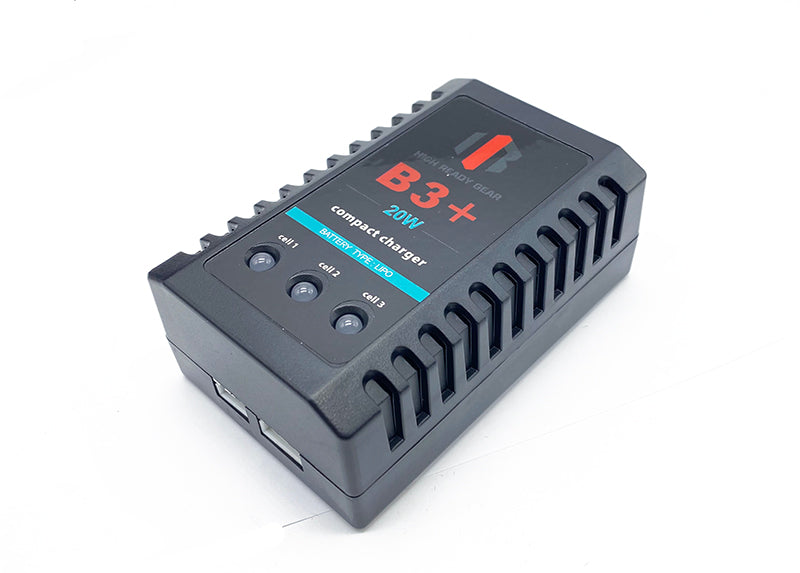

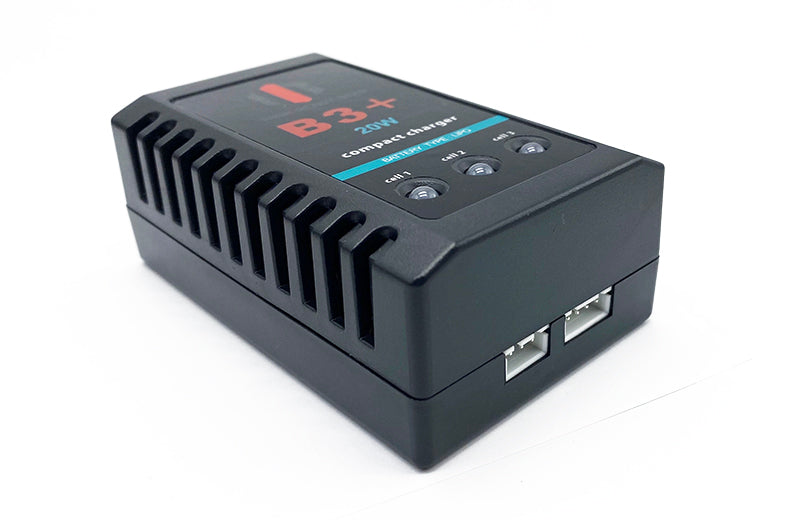

The B3 is very easy to use: simply plug it into the mains power, and the three lights will turn green, then flash red to indicate that the charger is ready. Connect your battery's balance lead to the charger's balance port. After 2 seconds, the charger detects the battery voltage and begins charging. When the charger starts charging, the lights turn solid red. If the battery is 2-cell, lights 1 and 2 remain continuously lit; if it is 3-cell, light 3 is also lit. When a cell is fully charged, the corresponding light turns green. When all cells are green, the battery is fully charged. Disconnect the battery before turning off the charger.
Specifications:
- Built-in power supply.
- 100V∼240V compatible.
-
Balance charging current: 1.6 A for 3S LIPO/2.0 A for 2S LiPO.
- Automatic charge start.
- Simple, reliable, and safe to use.
